INS-S6224W

Supports dual Intel chips ® Xeon ® 3rd Scalable series processors (Intel) ® C621A chipset
8 DDR4 memory slots, supporting up to 3200MHz 2TB
Supports DDR4 ECC RDIMM/3DS LRDIMM
Supports single specifications of 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Learn more

INS-S6224W

Supports dual Intel chips ® Xeon ® 3rd Scalable series processors (Intel) ® C621A chipset

8 DDR4 memory slots, supporting up to 3200MHz 2TB
Supports DDR4 ECC RDIMM/3DS LRDIMM
Supports single specifications of 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Integrate 12 SATA 3 (speed 6 Gb/s) ports, support RAID 0, 1, 5, 10 integrate 12 SATA 3 (speed 6 Gb/s) ports, support RAID 0, 1, 5, 10 (select RAID card/SAS HBA card according to actual situation to me

4 个 PCIe 4.0 x16

1 ASPEED AST2600 IPMI dedicated management port
Intel with 2 integrated motherboards ® I210 Gigabit RJ45 Ethernet port

Front panel: power button, restart button, 2 USB 3.0 interfaces, 1 UID light button
Rear panel: 2 USB 3.0 interfaces, 1 VGA interface, 2 RJ 45 network interfaces, 1 IPMI management dedicated interf

Standard configuration includes 2 550W power supplies (optional power supply according to actual situation)

Height 87mm * Width 438mm * Depth 660mm

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

compare

INS-S6436W

Supports dual Intel chips ® Xeon ® 3rd Scalable series processors (Intel) ® C621A chipset
8 DDR4 memory slots, supporting up to 3200MHz 2TB
Supports DDR4 ECC RDIMM/3DS LRDIMM
Supports single specifications of 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Learn more

INS-S6436W

Supports dual Intel chips ® Xeon ® 3rd Scalable series processors (Intel) ® C621A chipset

8 DDR4 memory slots, supporting up to 3200MHz 2TB
Supports DDR4 ECC RDIMM/3DS LRDIMM
Supports single specifications of 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Integrate 12 SATA 3 (speed 6 Gb/s) ports, support RAID 0, 1, 5, 10 integrate 12 SATA 3 (speed 6 Gb/s) ports, support RAID 0, 1, 5, 10 (select RAID card/SAS HBA card according to actual situation to me

4 PCIe 4.0 x16

1 ASPEED AST2600 IPMI dedicated management port
Intel with 2 integrated motherboards ® I210 Gigabit RJ45 Ethernet port

Front panel: power button, restart button, 2 USB 3.0 interfaces, 1 UID light button
Rear panel: 2 USB 3.0 interfaces, 1 VGA interface, 2 RJ 45 network interfaces, 1 IPMI management dedicated interf

Standard configuration includes 2 1300W power supplies (optional according to actual situation)

Height 176mm * Width 432mm * Depth 699mm

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

compare

INS-S6448W

Supports dual Intel chips ® Xeon ® 3rd Scalable series processors (Intel) ® C621A chipset
8 DDR4 memory slots, supporting up to 3200MHz 2TB
Supports DDR4 ECC RDIMM/3DS LRDIMM
Supports single specifications of 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Learn more

INS-S6448W

Supports dual Intel chips ® Xeon ® 3rd Scalable series processors (Intel) ® C621A chipset

8 DDR4 memory slots, supporting up to 3200MHz 2TB
Supports DDR4 ECC RDIMM/3DS LRDIMM
Supports single specifications of 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Integrate 12 SATA 3 (speed 6 Gb/s) ports, support RAID 0, 1, 5, 10 integrate 12 SATA 3 (speed 6 Gb/s) ports, support RAID 0, 1, 5, 10 (select RAID card/SAS HBA card according to actual situation to me

4 个 PCIe 4.0 x16

1 ASPEED AST2600 IPMI dedicated management port
Intel with 2 integrated motherboards ® I210 Gigabit RJ45 Ethernet port

Front panel: power button, restart button, 2 USB 2.0 interfaces, 1 UID light button, hard drive indicator light
Rear panel: 2 USB 3.0 interfaces, 1 VGA interface, 2 RJ 45 network interfaces, 1 IPMI

Standard configuration includes 2 1300W power supplies (optional according to actual situation)

Height 176mm * Width 447mm * Depth 818mm

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

compare

INS-G6410W

Supports dual Intel chips ® Xeon ® 3rd Scalable series processors (Intel) ® C621A chipset
32 DDR4 memory slots, supporting up to 3200MHz 8TB
Supports DDR4 ECC 3DS RDIMM/LRDIMM

Learn more

INS-G6410W

Supports dual Intel chips ® Xeon ® 3rd Scalable series processors (Intel) ® C621A chipset

32 DDR4 memory slots, supporting up to 3200MHz 8TB
Supports DDR4 ECC 3DS RDIMM/LRDIMM

Integrated with 12 SATA 3 (speed 6 Gb/s), the controller supports RAID 0, 1, 5, 10
Supports up to 12 3.5-inch/2.5-inch hot swappable HDDs/SSDs and supports the expansion of 10 2.5-inch HDDs/SSDs/NV

3 half height and half length PCIe 4.0 x16, 10 full height and full length PCIe 4.0 x16
1 PCIe 4.0 x16 OCP 3.0 slot (pull-out)

1 ASPEED AST2600 BMC IPMI dedicated management port

Front panel: power button, restart button, 2 USB 3.0 interfaces, 1 UID light button, 1 VGA interface, 1 COM interface
Rear panel: 2 USB 3.0 interfaces, 1 IPMI management dedicated interface

Standard configuration includes 4 1600W RPSU power supplies, supporting 3+1 redundancy

Height 176mm * Width 438mm * Depth 830mm

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

compare

INS-G6204ES

Supports dual Intel chips ® Xeon ® 4th/5th Scalable series processors (Intel) ® C741 chipset)
16 DDR5 memory slots, supporting up to 4800MHz 8TB
Supports DDR5 4800MHz RDIMM/LRDIMM

Learn more

INS-G6204ES

Supports dual Intel chips ® Xeon ® 4th/5th Scalable series processors (Intel) ® C741 chipset)

16 DDR5 memory slots, supporting up to 4800MHz 8TB
Supports DDR5 4800MHz RDIMM/LRDIMM

Integrate 6 SATA 3 (speed 6 Gb/s) ports
Supports up to 6 3.5 "/2.5" SATA/SAS/NVMe hard drives

4 full height and full length PCIe 5.0 x16/2 full height and full length PCIe 5.0 x16 adapter cards
1 half height and half length PCIe 4.0 x8

1 ASPEED AST2600 IPMI dedicated management port
Intel with 2 integrated motherboards ® I350 RJ45 Ethernet port

Front panel: power button, restart button, 4 USB 3.0 ports, reset CMOS button
Rear panel: power button, restart button, 2 USB 3.0 interfaces, 1 VGA interface, 2 RJ 45 network interfaces, 1 IPMI man

Standard configuration includes 2 2600W titanium grade module power supplies, supporting 1+1 redundancy

Height 88.9mm * Width 439.5mm * Depth 800mm

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

compare

INS-G6408ES

Supports dual Intel chips ® Xeon ® 4th/5th Scalable series processors (Intel) ® C741 chipset)
32 DDR5 memory slots, supporting up to 4400MHz 8TB; Supports DDR5 ECC RDIMM/3DS RDIMM
Supports single specifications of 64GB, 32GB, 16GB RDIMM and 256GB, 128GB 3DS RDIMM

Learn more

INS-G6408ES

Supports dual Intel chips ® Xeon ® 4th/5th Scalable series processors (Intel) ® C741 chipset)

32 DDR5 memory slots, supporting up to 4400MHz 8TB; Supports DDR5 ECC RDIMM/3DS RDIMM
Supports single specifications of 64GB, 32GB, 16GB RDIMM and 256GB, 128GB 3DS RDIMM

Integrated with 8 SATA 3 (speed 6 Gb/s) ports, supporting RAID 0, 1, 5, 10
Front end supports up to 8 3.5 "/2.5" hot swappable hard drives
Supports 1 NVMe M.2 PCIe 3.0 x4 2280/22110

8 full height and full-length PCIe 5.0 x16

1 ASPEED AST2600 IPMI dedicated management port
Intel with 2 integrated motherboards ® RJ45 Ethernet port

Front panel: power on LED button, restart button, 2 USB 3.2 interfaces, 1 UID light button, 1 VGA interface, reset CMOS button
Rear panel: 1 VGA interface, 2 RJ 45 network interfaces, 1 IPMI manage

Standard configuration includes 4 2700W power supplies, supporting 2+2 or 3+1 redundancy

Height 174.5mm * Width 440mm * Depth 800mm

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

compare

INS-G6410ES

Supports dual Intel chips ® Xeon ® 4th/5th Scalable series processors (Intel) ® C741 chipset)
32 DDR5 memory slots, supporting up to 4400MHz 8TB; Supports DDR5 ECC RDIMM/3DS RDIMM
Supports single specifications of 64GB, 32GB, 16GB RDIMM and 256GB, 128GB 3DS RDIMM

Learn more

INS-G6410ES

Supports dual Intel chips ® Xeon ® 4th/5th Scalable series processors (Intel) ® C741 chipset)

32 DDR5 memory slots, supporting up to 4400MHz 8TB; Supports DDR5 ECC RDIMM/3DS RDIMM
Supports single specifications of 64GB, 32GB, 16GB RDIMM and 256GB, 128GB 3DS RDIMM

Integrated with 8 SATA 3 (speed 6 Gb/s) ports, supporting RAID 0, 1, 5, 10
The front end supports up to 16 2.5 "NVMe hot swappable hard drives and 8 2.5" SAS/SATA hot swappable hard drive

13 full height and full-length PCIe 5.0 x16

1 ASPEED AST2600 IPMI dedicated management port
Intel with 2 integrated motherboards ® RJ45 10GbE Ethernet port

Front panel: power button, restart button, status light
Rear panel: 2 USB 3.0 interfaces, 1 VGA interface, 1 COM interface, 2 RJ 45 network interfaces, 1 IPMI management dedicated interface

Standard configuration includes 4 2700W power supplies, supporting 2+2 or 3+1 redundancy

Height 178mm * Width 437mm * Depth 737mm

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

compare

INS-G6916ES

Supports dual Intel chips ® Xeon ® 4th/5th Scalable series processors (Intel) ® C741 chipset)
32 DDR5 memory slots, supporting up to 4400MHz 8TB;
Supports DDR5 ECC RDIMM/3DS RDIMM

Learn more

INS-G6916ES

Supports dual Intel chips ® Xeon ® 4th/5th Scalable series processors (Intel) ® C741 chipset)

32 DDR5 memory slots, supporting up to 4400MHz 8TB;
Supports DDR5 ECC RDIMM/3DS RDIMM

Integrated with 9 SATA 3 (speed 6 Gb/s) ports, supporting RAID 0, 1, 5, 10
Supports up to 6 3.5 "SAS/SATA/NVMe hot swappable hard drives
Supports 1 NVMe M.2 PCIe 3.0 x4 2280/22110

9 full height and full-length PCIe 4.0 x16

1 ASPEED AST2600 BMC IPMI dedicated management port
Gigabit RJ45 Ethernet ports with 2 integrated motherboards

Power button, restart button, 4 USB 3.2 interfaces, 1 UID light button, 1 VGA interface, system fault light

Standard configuration includes 4 CRPS 2600W module power supplies

9U 800mm deep

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

compare

INS-G8916A

Supports dual AMD EPYC ™ 9004 series processors
24 DDR5 memory slots, supporting up to 4800MHz 6TB
Supports DDR5 4800/4400 RDIMM/3DS RDIMM

Learn more

INS-G8916A

Supports dual AMD EPYC ™ 9004 series processors

24 DDR5 memory slots, supporting up to 4800MHz 6TB
Supports DDR5 4800/4400 RDIMM/3DS RDIMM

Integrated with 9 SATA 3 (speed 6 Gb/s) ports, supporting RAID 0, 1, 5, 10
Supports up to 6 3.5 "SAS/SATA/NVMe hot swappable hard drives
Supports 1 NVMe M.2 PCIe 3.0 x4 2280/22110

9 full height and full-length PCIe 4.0 x16

1 ASPEED AST2600 BMC IPMI dedicated management port
Gigabit RJ45 Ethernet ports with 2 integrated motherboards

Power button, restart button, 4 USB 3.2 interfaces, 1 UID light button, 1 VGA interface, system fault light

Standard configuration includes 4 CRPS 2600W module power supplies

9U 800mm deep

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

compare

INS-G8408RM

Supports dual AMD EPYC ™ 7003/7002 series processors
32 DDR4 memory slots, supporting up to 3200MHz 8TB
Supports DDR4 3200MHz RDIMM/LRDIMM

Learn more

INS-G8408RM

Supports dual AMD EPYC ™ 7003/7002 series processors

32 DDR4 memory slots, supporting up to 3200MHz 8TB
Supports DDR4 3200MHz RDIMM/LRDIMM

Integrate 2 SATA 3 (speed 6 Gb/s) ports
Front end supports up to 24 2.5-inch SATA/SAS hot swappable hard drives

9 full height and full-length PCIe 4.0 x16

1 ASPEED AST2600 IPMI dedicated management port
Intel with 2 integrated motherboards ® RJ45 Ethernet port

Front panel: power button, restart button, status light
Rear panel: 2 USB 3.0 interfaces, 1 VGA interface, 1 COM interface, 2 RJ 45 network interfaces, 1 IPMI management dedicated interface

Standard configuration includes 4 1600W power supplies, supporting 2+2 redundancy

Height 178mm * Width 437mm * Depth 737mm

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

compare

INS-G8408A

Supports dual AMD EPYC ™ 9004 series processor (AMD Socket SP5)
24 DDR5 memory slots, supporting up to 4800MHz 6TB
Supports DDR5 4800/4400 RDIMM/3DS RDIMM

Learn more

INS-G8408A

Supports dual AMD EPYC ™ 9004 series processor (AMD Socket SP5)

24 DDR5 memory slots, supporting up to 4800MHz 6TB
Supports DDR5 4800/4400 RDIMM/3DS RDIMM

Integrate 4 SATA 3 (speed 6 Gb/s) interfaces
Supports up to 8 3.5 "SAS/SATA/NVMe hot swappable hard drives
Supports 1 NVMe M.2 PCIe 3.0 x4 2280/22110

10 full height and full-length PCIe 5.0 x16

1 ASPEED AST2600 BMC IPMI dedicated management port
Intel with 2 integrated motherboards ® 10GbE RJ45 Ethernet port

Front panel: power on LED button, restart button, 2 USB 3.2 interfaces, 1 UID light button, 1 VGA interface, reset CMOS button
Rear panel: 1 VGA interface, 2 RJ 45 network interfaces, 1 IPMI manage

Standard configuration includes 4 2600W power supplies, supporting 2+2 redundancy

Height 174.5mm * Width 440mm * Depth 800mm

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

compare

INS-G8410A

Supports dual AMD EPYC ™ 9004 series processor (AMD Socket SP5)
24 DDR5 memory slots, supporting up to 4800MHz 6TB
Supports DDR5 4800/4400 RDIMM/3DS RDIMM

Learn more

INS-G8410A

Supports dual AMD EPYC ™ 9004 series processor (AMD Socket SP5)

24 DDR5 memory slots, supporting up to 4800MHz 6TB
Supports DDR5 4800/4400 RDIMM/3DS RDIMM

Integrate 2 SATA 3 (speed 6 Gb/s) interfaces
Supports up to 24 2.5 "SATA/NVMe hot swappable hard drives
Supports 1 NVMe M.2 PCIe 3.0 x4 2280/22110

11 full height and full-length PCIe 5.0 x1

1 ASPEED AST2600 BMC IPMI dedicated management port
Intel with 2 integrated motherboards ® 10GbE RJ45 Ethernet port

Front panel: power button, restart button, status light
Rear panel: 2 USB 3.0 interfaces, 1 VGA interface, 1 COM interface, 2 RJ 45 network interfaces, 1 IPMI management dedicated interface

Standard configuration includes 4 2000W power supplies, supporting 3+1 redundancy

Height 178mm * Width 437mm * Depth 737mm

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

compare

INS-G8202RM

Supports dual AMD EPYC ™ 7003/7002 series processors (AMD Socket SP3)
32 DDR4 memory slots, supporting up to 3200MHz 8TB
Supports DDR4 3200MHz SDRAM/LRDIMM

Learn more

INS-G8202RM

Supports dual AMD EPYC ™ 7003/7002 series processors (AMD Socket SP3)

32 DDR4 memory slots, supporting up to 3200MHz 8TB
Supports DDR4 3200MHz SDRAM/LRDIMM

Integrate 12 SATA 3 (speed 6 Gb/s) ports
Front end supports up to 12 3.5-inch hot swappable hard drives
Supports 1 SATA/NVMe M.2 PCIe 3.0 x4 2280/22110

4 full height and full-length PCIe 4.0 x16

1 ASPEED AST2600 IPMI dedicated management port
Intel with 2 integrated motherboards ® RJ45 Ethernet port

Front panel: power button, restart button
Rear panel: 2 USB 3.0 interfaces, 1 VGA interface, 1 COM interface, 2 RJ 45 network interfaces, 1 IPMI management dedicated interface

Standard configuration includes 2 1600W power supplies, supporting 1+1 redundancy

Height 89mm * Width 437mm * Depth 723mm

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

compare

INS-G8204A

Supports dual AMD EPYC ™ 9004 series processors
24 DDR5 memory slots, supporting up to 4800MHz 6TB
Supports DDR5 4800/4400 RDIMM/3DS RDIMM

Learn more

INS-G8204A

Supports dual AMD EPYC ™ 9004 series processors

24 DDR5 memory slots, supporting up to 4800MHz 6TB
Supports DDR5 4800/4400 RDIMM/3DS RDIMM

Integrate 8 SATA 3 (speed 6 Gb/s) ports
Front end supports up to 12 3.5 "NVMe hot swappable hard drives
Supports 2 NVMe M.2 PCIe 4.0 x4 2280

4 full height and full-length PCIe 5.0 x16

1 ASPEED AST2600 IPMI dedicated management port
Intel with 2 integrated motherboards ® RJ45 Ethernet port

Front panel: Power on LED button, restart button, 2 USB 3.2 ports
Rear panel: 2 USB 3.1 interfaces, 1 VGA interface, 2 RJ 45 network interfaces, 1 IPMI management dedicated interface

Standard configuration includes 2 2600W power supplies, supporting 1+1 redundancy

Height 88.1mm * Width 449mm * Depth 840mm

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

compare

INS-G6408W

Supports dual Intel chips ® Xeon ® 3rd Scalable series processors (Intel) ® C621A chipset
32 DDR4 memory slots, supporting up to 3200MHz 8TB
Supports DDR4 ECC 3DS RDIMM/LRDIMM

Learn more

INS-G6408W

Supports dual Intel chips ® Xeon ® 3rd Scalable series processors (Intel) ® C621A chipset

32 DDR4 memory slots, supporting up to 3200MHz 8TB
Supports DDR4 ECC 3DS RDIMM/LRDIMM

Integrate 8 SATA 3 (speed 6 Gb/s), controller supports RAID 0, 1, 5, 10
Supports up to 8 2.5 "NVMe hot swappable hard drives
16 2.5 '' SAS/SATA hot swappable hard drives
Suppor

12 full height and full-length PCIe 4.0 x16

Supports up to 8 dual width GPUs

1 ASPEED AST2600 BMC IPMI dedicated management port
Intel with 2 integrated motherboards ® I350 RJ45 Ethernet port

Standard configuration includes 4 2000W power supplies, supporting 2+2 redundancy

Height 178mm * Width 437mm * Depth 737mm

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

compare

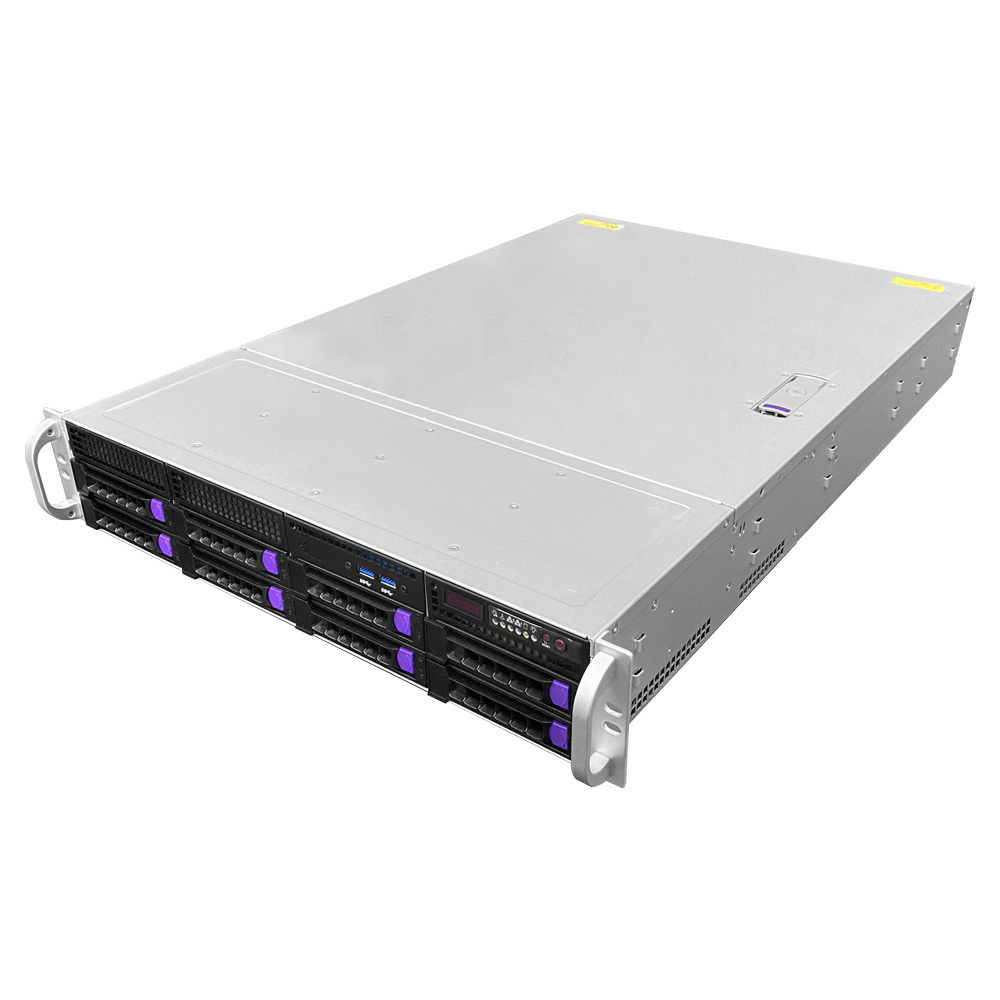

INS-R2202-8I Universal Server

Supports 2 1st or 2nd generation Intel chips ® Xeon ® Scalable Processors（LGA3647）
8 DDR4 memory slots, maximum support 2TB Registered ECC DDR4 2933MHz

Learn more

INS-R2202-8I Universal Server

Supports 2 1st or 2nd generation Intel chips ® Xeon ® Scalable Processors（LGA3647）

8 DDR4 memory slots, maximum support 2TB Registered ECC DDR4 2933MHz

Comes standard with 8 2.5/3.5 "SATA/SAS hard drives, expandable to an additional 12
1 NVME M.2 3.0X4 2280/22110

2 PCIe 3.0 x16, 3 PCIe 3.0 x8,1 PCIe 3.0 x4 (in x8 slot)

2 integrated Gigabit Ethernet cards (RJ45 interface), optional 10G Ethernet card

1 VGA port
4 USB 2.0 ports(2 rear + 2 via header)
1 COM Ports (1 header)

Standard dual power 550W, can be upgraded to 800W/1300W or redundant gold medal power supply

87mm x 438mm x 557mm(H*W*D) (H*W*D)

Operating temperature from 0 ° C to 50 ° C (32 ° F to 122 ° F); -40 ° C -70 ° C (-40 ° F -158 ° F) non operating temperature

Microsoft Windows Server；Red Hat Enterprise Linux Server；CentOS Linux Server；Ubuntu；
SUSE Linux Enterprise Server VMWare ESXi 7.0u1 x64

Learn more

compare

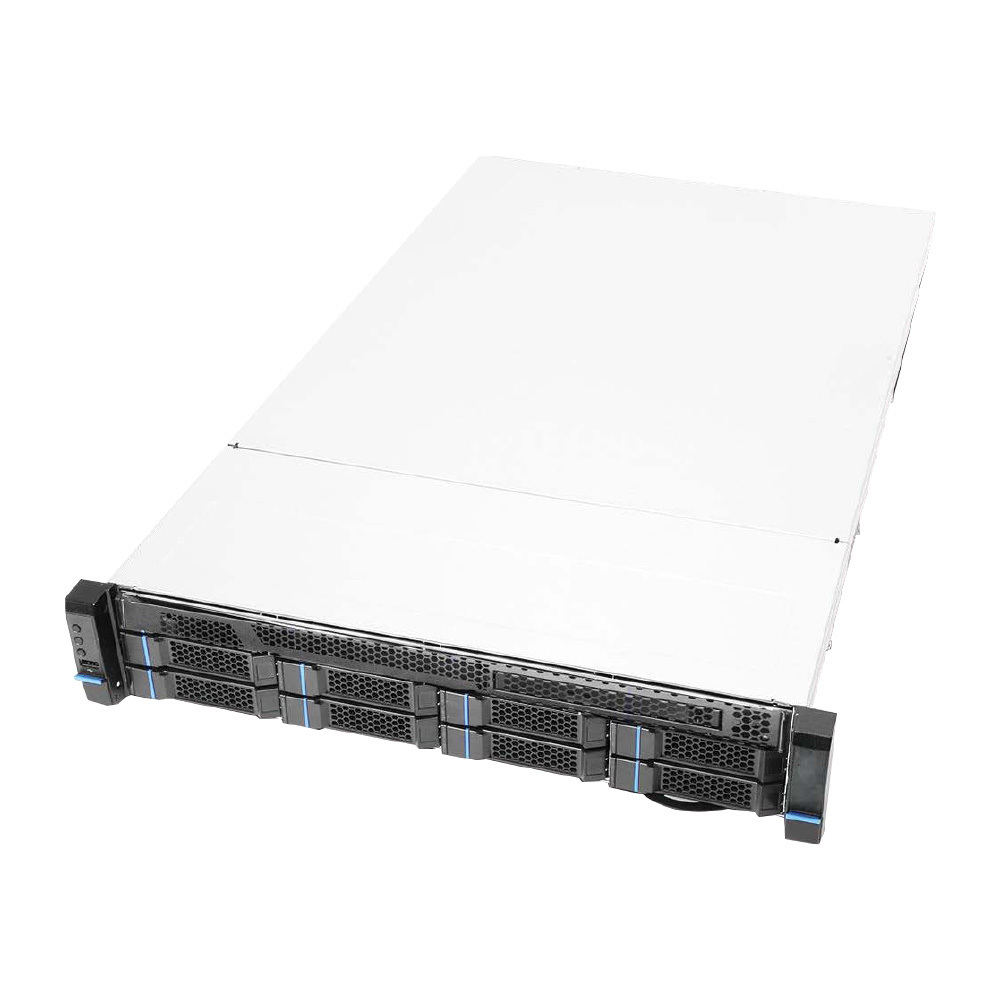

INS-B6208W

Supports a single Intel chip ® Xeon ® 3rd Scalable series processors (Intel) ® C621A chipset
8 DDR4 memory slots, supporting up to 3200MHz 2TB
Supports DDR4 ECC RDIMM/3DS LRDIMM
Supports single specifications of 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Learn more

INS-B6208W

Supports a single Intel chip ® Xeon ® 3rd Scalable series processors (Intel) ® C621A chipset

8 DDR4 memory slots, supporting up to 3200MHz 2TB
Supports DDR4 ECC RDIMM/3DS LRDIMM
Supports single specifications of 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Integrated with 10 SATA 3 (speed 6 Gb/s) ports (rear mounted), supporting RAID 0, 1, 5, 10
Front end supports up to 8 3.5 "hot swappable hard drives
Rear support for up to 2 2.5 "hot s

2 个 PCIe 4.0 x16，2 个 PCIe 4.0 x8，3 个 PCIe 3.0 x8

1 ASPEED AST2600 IPMI dedicated management port
Intel with 2 integrated motherboards ® I210 Gigabit RJ45 Ethernet port

Front panel: power button, restart button, 1 USB 3.0 interface, 1 UID light button
Rear panel: 2 USB 3.2 Gen 1 interfaces, 2 USB 2.0 interfaces, 1 VGA interface, 1 COM interface, 2 RJ45 network int

Standard configuration includes 2 550W power supplies (optional power supply according to actual situation)

Height 87mm * Width 438mm * Depth 660mm

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

compare

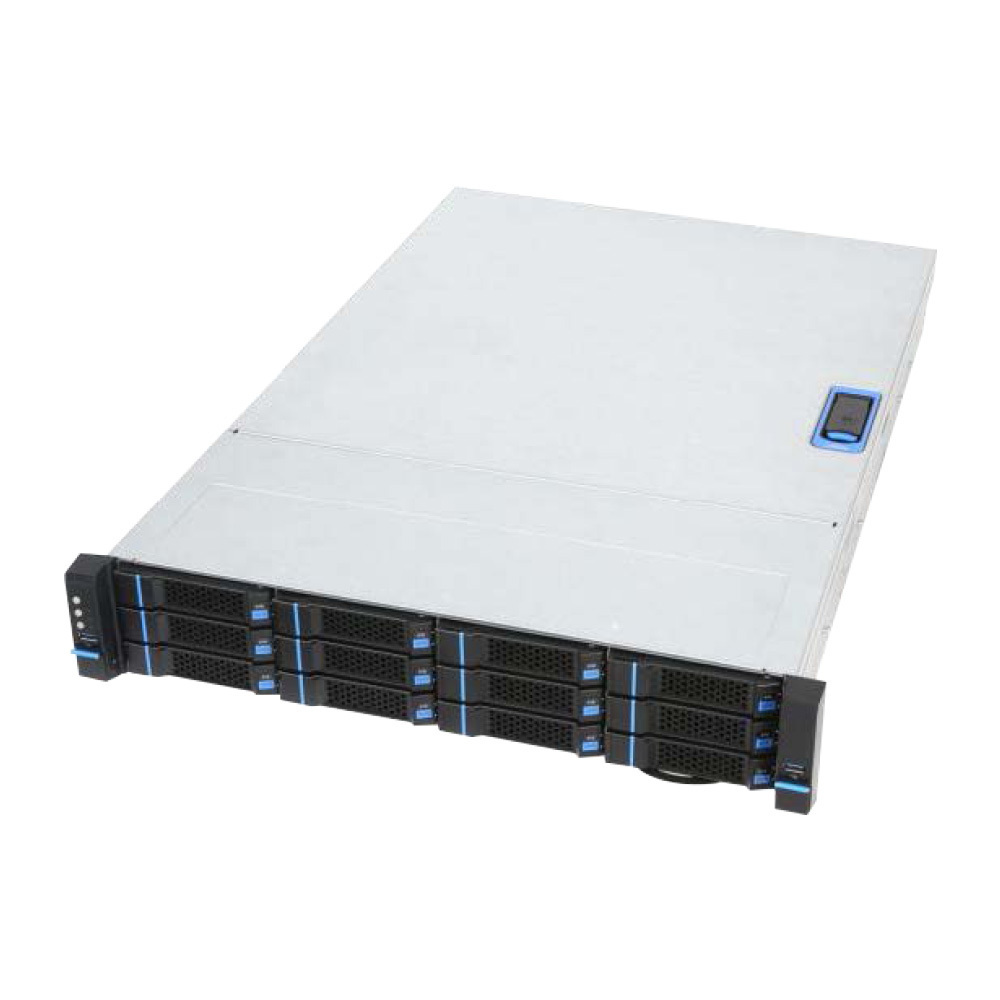

INS-B6212W

Supports dual Intel chips ® Xeon ® 3rd Scalable series processors (Intel) ® C621A chipset
8 DDR4 memory slots, supporting up to 3200MHz 2TB
Supports DDR4 ECC RDIMM/3DS LRDIMM
Supports single specifications of 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Learn more

INS-B6212W

Supports dual Intel chips ® Xeon ® 3rd Scalable series processors (Intel) ® C621A chipset

8 DDR4 memory slots, supporting up to 3200MHz 2TB
Supports DDR4 ECC RDIMM/3DS LRDIMM
Supports single specifications of 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Integrated with 12 SATA 3 (speed 6 Gb/s) ports, supporting RAID 0, 1, 5, 10
Front end supports up to 12 3.5-inch hot swappable hard drives
Rear support for up to 2 2.5 "hot swappable hard d

4 PCIe 4.0 x16

1 ASPEED AST2600 IPMI dedicated management port
Intel with 2 integrated motherboards ® I210 Gigabit RJ45 Ethernet port

Front panel: power button, restart button, 2 USB 3.0 interfaces, 1 UID light button
Rear panel: 2 USB 3.0 interfaces, 1 VGA interface, 2 RJ 45 network interfaces, 1 IPMI management dedicated interf

Standard configuration includes 2 550W power supplies (optional power supply according to actual situation)

Height 87mm * Width 438mm * Depth 660mm

Working temperature: 10 ° C -35 ° C (50 ° F -95 ° F)
Storage temperature: -40 ° C -70 ° C (-40 ° F -158 ° F)
Relative humidity for work/storage: 10% -95% (non condensing state of air at 35 ℃)

Mainstream systems such as Microsoft Windows, CentOS, Ubuntu, etc
For specific detailed versions, please contact your sales representative or consult technical support

Learn more

Server

High-performance Workstation

Edge Computing

Domestic Information

OEM

Liquid Cooling Solution

Industrial Vision

HPC High-Performance Cluster

Distributed Storage

Introduction

Scope

Process

Terms of Service

Warranty Inquiry

Resource Download

FAQ

Industry

Company

Profile

Qualifications

Contact Us

Product

Server

High-performance Workstation

Edge Computing

Domestic Information

OEM

Choose the server that is most suitable for your use

通用服务器

GPU服务器

存储服务器

高密度服务器

全部

Appearance structure

CPU type

Number of CPUs

Number of hard drives

Number of GPUs

Compare the options you have chosen

Jump to the filtering page

model

About us

Products

Solution

OEM

Insnord

关注我们

Mall
