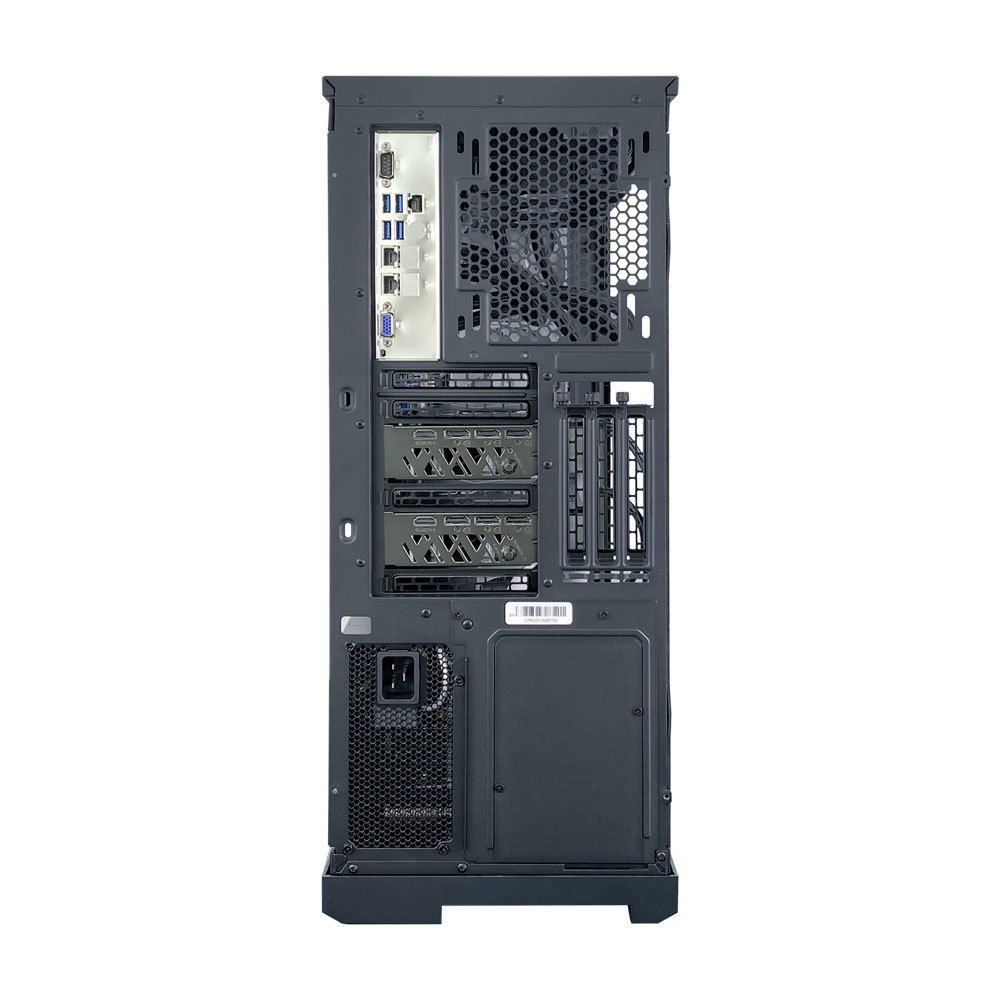

INS-W642000-G2 Liquid Cooling Workstation

INS-W642000-G2 is a dual desktop liquid cooled silent workstation that uses the Intel C621A chipset and supports the latest 3rd Gen Intel ® Xeon ® Scalable processor, supports a maximum memory capacity of 4TB, comes standard with 4 3.5-inch SATA hard drives, can be expanded as needed, and is compatible with 2.5-inch hard drives. Six PCI-E4.0 support half height/full height card expansion slots, providing users with ample expansion space. Adopting a new type of highly breathable panel, both the air inlet and outlet are equipped with high-density dust-proof nets, which are easy to disassemble and clean. Three dimensional air duct, large area air-cooled heat dissipation, coupled with powerful water-cooled radiator to ensure the normal operation of the machine under high power consumption, and supports dual 480 water-cooled row installation. Equipped with 1000W as standard, it can be upgraded to a single 2000W, 2400W or redundant Gold Medal power supply.

Super performance

●Liquid cooled silent heat dissipation, using CPU+GPU full liquid cooling heat dissipation, the noise of the whole machine at full load is less than 55dB, the circulating air duct design has no dead corners for heat dissipation, and the closed circulating water circuit is safe and convenient.

flexible expansion

● PCIE 4.0 has doubled the throughput compared to PCIE 3.0, enabling fast transmission of big data. Each PCIE slot has 64 channels, with up to 128 channels in 2P configuration, for fast data transfer from CPU to GPU, accelerator, or storage.

maintainability

● Support frequency reduction function, which can reduce system energy consumption at low loads.

● Full lifecycle intelligent operation and maintenance, IPMI deep fault diagnosis technology

● Optional 80PLUS Platinum and Titanium Power Modules to Improve Energy Efficiency

processor
memory
Storage Expansion
PCIe Expansion
network interface
I/O interface
power supply
Overall dimensions
temperature range
system support
Supports 2 3rd Gen Intel chips ® Xeon ® Scalable series (LGA4189)
18 DDR4 memory slots, supporting up to 4TB Registered ECC DDR4 3200MHz
Comes standard with 4 3.5 "SATA hard drives, expandable according to requirements
1 NVME M.2 2280/22110
4 PCIe 4.0 x16, 2 PCIe 4.0 x8
2 integrated Gigabit Ethernet cards (RJ45 interface), optional 10G Ethernet card
2 VGA (1 rear bezel, 1 front panel) port(s)
7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
2 USB 2.0 port(s) (2 via header)
2 COM Port(s) (1 header; 1 rear)
Standard single power 1000W, can be upgraded to single power 2000W, 2400W or redundant gold medal power supply
580 mm X 240mm X 560mm(H*W*D)
Working temperature 10 ° C -35 ° C (50 ° F -95 ° F); Non working temperature -40 ° C -70 ° C (-40 ° F -158 ° F)
Microsoft Windows Server;Red Hat Enterprise Linux Server;CentOS Linux Server;Ubuntu; SUSE Linux Enterprise Server VMWare ESXi 7.0u1 x64
